| Place of Origin | jiangsu,China |
| Brand Name | Smoothly |
| Certification | ISO9001 |
| Model Number | 2530 |

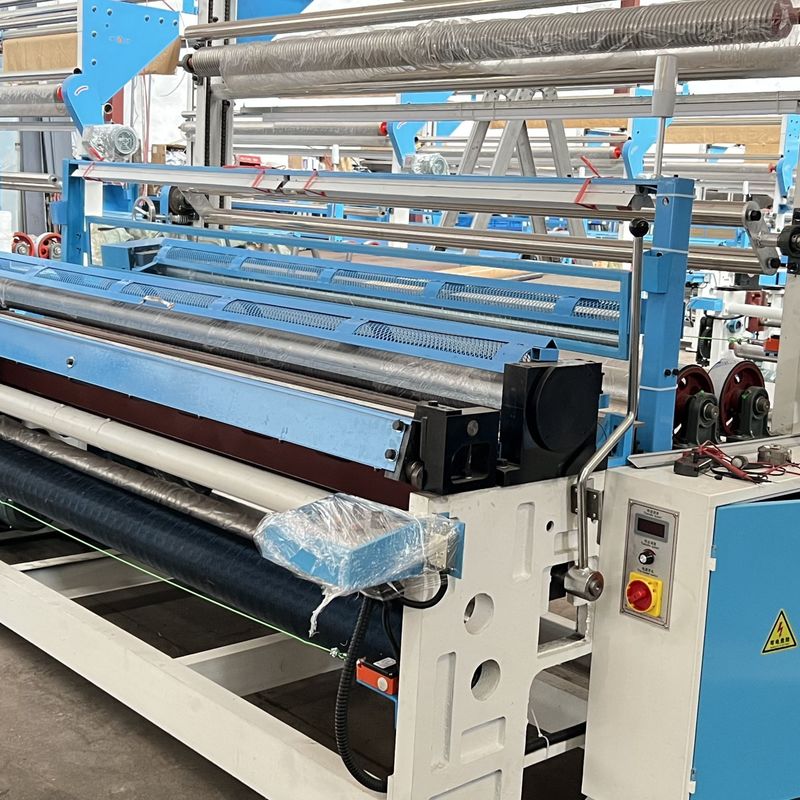

China Textile Machinery Dyeing Machine Equipment Singeing Machine
Technical Features:
1. Compact structure, and the distance between the rollers is small.
2. All the rollers except the transition rollers are dynamic rollers with decreases the tension and avoid corrugation.
3. PLC control and frequency conversion speed regulation ensures a stable synchronism and avoids corrugation.
4. The machine frames and rollers have high mechanical strength, together with small fit tolerance and stable transmission to avoid corrugation.
5. Multiple S type transmission and thread separation avoid corrugation and peeling and ensure even singeing.
Technical Parameters:
| 1. Vehicle distinction | Left, right |
| 2. Width | 2400mm |
| 3. Thermal source | gasoline, natural gas and oil gas |
| 4. Power consumption | Take gasoline and 2,200 mm width machine as an example: 10L /h |
| 5. Speed | 40 to 100 m/min |
| 6. Environment protection | equipped with dust removal device; up-to-standard, no pollution and low noise |
| 7. Ways of singeing | counter-singeing, cutting and singeing |
| 8. Span adjustment | 570 cooling cylinder adjustable |
| 9. Break point treatment | the burner turns to other direction automatically |
| 10. Forms of cooling | steam, water |
| 11. Singeing level | above level 4 |
| 12. Motor power | 14.8KW |
| 13. Dimension (L*W*H) | 7500*4200*3300mm |
Application:
This machine is special for singeing the 100% cotton,hemp and other blended fabric to remove impurity and villous of fabric surface.
Main technical parameter:
1. Machine roller surface width: 2000mm
2. Machine back side: based on client’s request
3. Machine speed: 15~110m/min
4. Heat source: LPG or natural gas
5. In the singeing box there are 4 burners (gas injection type flame),in the top equipped with exhaust fan.
6. In the singeing box, the burner will automatic come down when the machine speed is lower than set value.
7. Burner ignition: electronic control manual ignition.
8. Extinguishing type: steam and nip dual ignition.
9. Output device: rolling output.
10. Transmission model: AC frequency conversion synchronous regulating speed transmission.
11. Installed power: about 15KW.
Main structure feature:
Feeding frame made of edge fold steel plate, equipped with fabric tighten device,guide roller,selvedge guider etc.
Composed of two pcs of palm fibre brushing rollers, 2 pcs of rubber roller, equipped with dust absorption and filter.
Four burners singeing, passing cloth can achieve two positive two negative, the angle of burners burning each other or cutting burning can be manual regulated.
Nominal pressure is 3 ton, single squeezing point, underneath compression, upper roller is steel roller, and frequency converter drives geared motor, steel roller dia. Is 225mm, coated with stainless steel plate. Lower roller is rubber roller; diameter is 250mm, NBR. Upper and lower squeezing roller body is seamless steel tube. Transmission power is 3 kw.
Rack is steel plate folded plate structure; output device is package output, single motor drives.
Rack of the whole machine made of Channel steel 314
The process: (see flow chart)
Open-width entry → brushing box → four burners singeing combination → steam-smothering → MH561 two rollers squeezer → two cold water roller → open width doffing.
