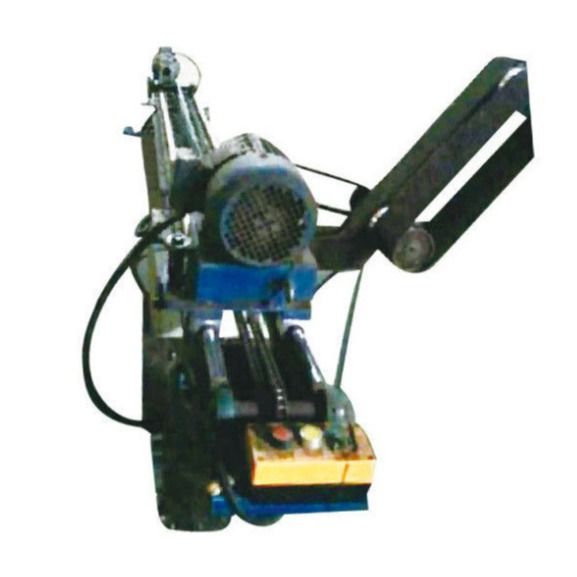

Knit Singeing Machine Burner Corduroy Denim
  • Knit Singeing Machine Burner Corduroy Denim

Knit Singeing Machine Burner Corduroy Denim

Place of Origin jiangsu,China
Brand Name Smoothly
Certification ISO9001
Model Number 270
Product Details
Name:
Textile Singeing Machine
Model And Specifications:
SLXX / 270
Effective Work Width:
200--1900mm
Transmission Speed:
20 ~ 110m / Min
Cylindrical Specifications:
∮ 270 × 2530
Silicon Carbide Rod Combination:
2 × 2 × ∮45
Flash Surface Temperature:
900 ~ 1000 ℃
Installed Capacity:
180KW
Highlight:

Knit Singeing Machine

,

Singeing Machine Burner

,

Singeing machinery for kitted fabric

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Standard shipping wooden box
Delivery Time
A month
Payment Terms
T/T , L/C, D/A, D/P
Supply Ability
1 set
Product Description


Knit Singeing Machine Burner Corduroy Denim
This machine is suitable for surface polishing of natural and chemical fiber, knitted and gregarious fabrics. It is mainly used for processing of ordinal woolen, blanket, micro velboa and knitted non-pressed-pile. It also can be used to polish velvet, cotton fabrics, high pile knitted fabric and man-made fiber. Its working efficiency is nearly twice as the ordinary polishing machine.

Use in corduroy, denim, Khaki Drills, canvas and other singeing. Remove the fluff on the surface of the fabric and improve the finish.


NameTextile Singeing Machine
Model and specificationsSLXX / 270
Effective work Width200--1900mm
Transmission speed20 ~ 110m / min
Cylindrical specifications∮ 270 × 2530
silicon carbide rod combination2 × 2 × ∮45 F
lash surface temperature900 ~ 1000 ℃
installed capacity180KW



Use in corduroy, denim, Khaki Drills, canvas and other singeing. Remove the fluff on the surface of the fabric and improve the finish.
      Product details
    The main features of the equipment
     1. SLXX / 270 energy drum drum singeing machine to industrial power for the kinetic energy, using a new type of energy efficient materials silicon carbide rod for the heating heat source, iron nickel chromium alloy cylinder for the heat burner. Fire cylinder diameter 270mm, the cylinder built-in 4 diameter 40mm specifications of the straight type silicon carbon rods. And the cold end of the cylinder and the heating zone has been protected.
      2. The original fuel singeing machine fire for the naked singeing, the singeing work surface is only 20% of the cylinder, a considerable part of the calorific value will be lost in the singeing. The equipment in the cylinder under the burning of the insulation box, the drum 70% of the non-working surface to be insulation, resulting in the cylinder temperature in the work of long-term to maintain the set process temperature, while reducing the silicon carbide Of the frequent thermostat, the energy-saving effect is obvious.
      3. The electrical system of the device is fully designed according to the principle of singeing and the characteristics of silicon carbon rod, the whole intelligent control, in the set temperature of 800 to 1000 degrees interval, silicon carbide actual power consumption of less than 70%, and thus larger Saving power consumption. Unique circuit design to ensure that the equipment is stable, reliable operation, and easy to control, safe.
      Second, the equipment of the main technical indicators:
      Model and specifications SLXX / 270 Effective work Width 200--1900mm Transmission speed 20 ~ 110m / min Cylindrical specifications ∮ 270 × 2530 silicon carbide rod combination 2 × 2 × ∮45 Flash surface temperature 900 ~ 1000 ℃ installed capacity 180KW
      Third, the comparison of similar equipment
       This equipment is compared with the conventional fuel cylinder singeing machine, gas burner singeing machine with less energy consumption, high surface temperature, small temperature difference singular grade, no environmental pollution, good equipment stability and so on. More conventional singeing machine, the same variety of singeing can save production costs as much as three-fifths.

Product Catalogue


Machine TypeCloth Guide SpeedMotor PowerMachine Size
Corduroy Cutting Machine12m /min9kw250cm * 235cm * 220cm
Textile Singeing Machine20 ~ 110m / min180KW250cm * 235cm * 225cm
Textile Dryer Machine10 ~ 50m / Min10 ~ 22kw15000 × 3400 × 3600 (Mm)
Fabric Inspection Machine1400rpm/min7KW235cm*350cm*230cm(72")
Fabric Inspection Machine0-150m/min7KW250cm * 235cm * 210cm
Fabric Inspection And Rolling Machine≤100m/min1.5kw2235(L)*2600~3600(W)*2000(H)
Fabric Brushing Machine8~22m/min14.5-25kw250cm * 235cm * 220cm
Fabric Folding Machine80y/Min/2450*2820*1550
