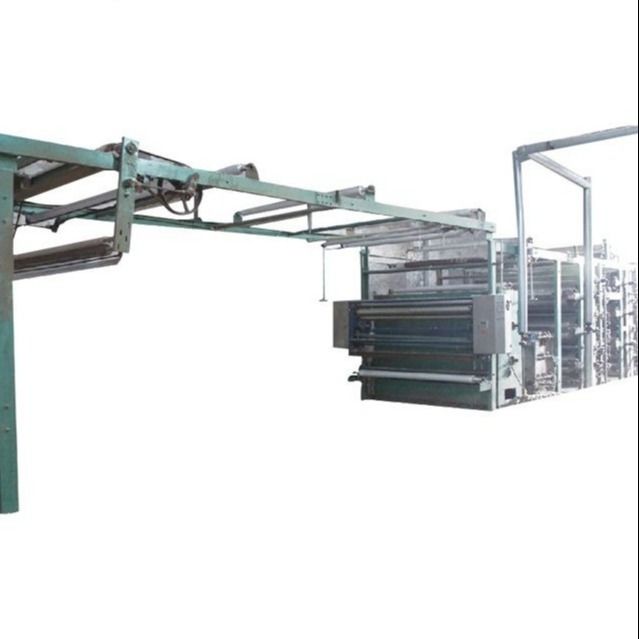

Heavy Duty Fabric Dryer Machine In Textile Heavy Duty
  • Heavy Duty Fabric Dryer Machine In Textile Heavy Duty

Heavy Duty Fabric Dryer Machine In Textile Heavy Duty

Place of Origin jiangsu,China
Brand Name Smoothly
Certification ISO9001
Model Number SL/230
Product Details
Name:
Fabric Dryer Machines
Width:
2200--2300mm
Installed Power:
10 ~ 22kw
Model:
Sl / 230
Specifications:
Nominal Width 2200mm
Product Dimensions:
15000 × 3400 × 3600 (Mm)
Speed:
10 ~ 50m / Min (Frequency Control)
Drying Tube Steam Pressure:
≤ 0.2mpa
To Wet Moisture::
12 ~ 18%
Falling Moisture Regain:
4 ~ 6%
Highlight:

Fabric dryer machine in textile

,

Heavy Duty Fabric dryer machine

,

textile dryer machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Standard shipping wooden box
Delivery Time
A month
Payment Terms
T/T , L/C, D/A, D/P
Supply Ability
1-2 sets
Product Description

       Fabric dryer machine in textile Heavy Duty
Textile Drying:
Drying is defined as a process where the liquid portion of the solution (moisture content) is evaporated from the fabric. This is done after de-watering of fabric. The water dispersed in a textile material by a chemical–physical process is generally eliminated by the action of hot air, which makes the water evaporate. In textile finishing unit; dryer uses for dry the knit, woven fabrics and dyed yarn. But the drying process and drying mechanism of yarn and fabrics is different from one to another. Drying operations are done by textile drying machine. During the drying process, it is very important to carefully consider the way heat is directed on the fabric.
Specification


Name Fabric Dryer Machines
Width 2200--2300mm.
Installed Power 7.5 ~ 12.5kw
Model Sl / 230
Specifications Nominal Width 2200mm
Product Dimensions 15000 × 3400 × 3600 (Mm)
Speed 10 ~ 50m / Min (Frequency Control)
Drying Tube Steam Pressure ≤ 0.2mpa
Installed Power 10 ~ 22kw
To Wet Moisture 12 ~ 18%
Falling Moisture Regain 4 ~ 6%



 Width: 2200--2300mm.
         Features: with a hard soft brush or scraping box in addition to impurities, impurity removal effect, the fabric humidity drying uniform and stable, stretch effect of the effect of obvious varieties.
         Installed power: 7.5 ~ 12.5KW
         Product use: the corduroy fabric scraping scraping, round brush, drying drum baking treatment. So that the door of the light bulb shrink to the process requirements, while the cloth cleaning process.
         Model and specifications: SL / 230             nominal width 2200mm
         Product Dimensions: 15000 × 3400 × 3600 (mm)
         Speed: 10 ~ 50m / min (frequency control)
         Drying tube steam pressure: ≤ 0.2Mpa
         Installed power: 10 ~ 22KW
         To wet moisture: 12 ~ 18%
         Falling moisture regain: 4 ~ 6%
         Main features: The machine supports the movement of the various components of the bracket are by the vertical and horizontal steel beam bolted, simple structure, the entire part of the machine easy to adjust maintenance and disassembly. The machine to the wet box has a steam chamber baking water pipes, respectively, from the role of insulation and catchment. The main drive motor of the machine is driven by the transmission gear to rotate the cylinder. In addition to drying fabrics, but also from the cloth and take the cloth door width of the use. This machine is equipped with impurity removal mechanism, increase the clearance of cotton cloth heteroaryl effect.

Product Catalogue


Machine Type Cloth Guide Speed Motor Power Machine Size
Corduroy Cutting Machine 12m /min 9kw 250cm * 235cm * 220cm
Textile Singeing Machine 20 ~ 110m / min 180KW 250cm * 235cm * 225cm
Textile Dryer Machine 10 ~ 50m / Min 10 ~ 22kw 15000 × 3400 × 3600 (Mm)
Fabric Inspection Machine 1400rpm/min 7KW 235cm*350cm*230cm(72")
Fabric Inspection Machine 0-150m/min 7KW 250cm * 235cm * 210cm
Fabric Inspection And Rolling Machine ≤100m/min 1.5kw 2235(L)*2600~3600(W)*2000(H)
Fabric Brushing Machine 8~22m/min 14.5-25kw 250cm * 235cm * 220cm
Fabric Folding Machine 80y/Min / 2450*2820*1550


FAQ
Q1. Are you trading company or manufacturer?
We are factory. The company is located in Lijia Town, Wujin District, Changzhou City, Jiangsu Province, China.

Q2. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
Q3. Why choose us?
1.Professional Advice and Product Knowledge
2.Prompt Reply for Quotion and other questions
3.Specific Guarantee and Best after service

Q4. Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.

Q5. What products do you have?
Corduroy Cutting Machine, Textile Singeing Machine,Textile Dryer Machine,Fabric Inspection Machine,Fabric Inspection And Rolling Machine,Fabric Brushing Machine,Fabric Folding Machine, etc.

Q6. What is the order process?
Inquiry - Communication - Quotation - Order confirmation - Payment - Production - Test and commissioning - Packaging - Delivery - Customer reception - After-sales service.

Q7. How about your warranty?
Generally,our warranty is one years. Within the warranty period, we can offer technique support.

Q8. What mode of transportation do you use?
We generally use the mode of sea transportation. If you have any special requirements, you can contact us for discussion.

Q9. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
Q10. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
