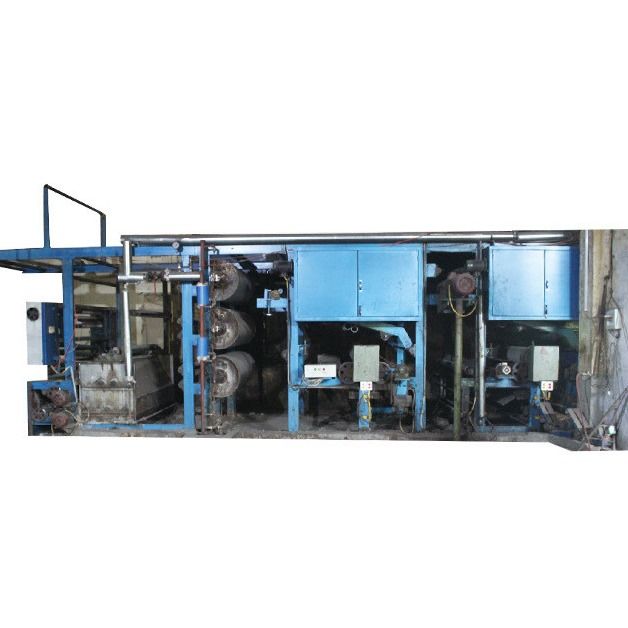

Textile Gas Singeing Machine Process 15-100m Min
  • Textile Gas Singeing Machine Process 15-100m Min

Textile Gas Singeing Machine Process 15-100m Min

Place of Origin jiangsu,China
Brand Name Smoothly
Certification ISO9001
Model Number 2530
Product Details
A Grade
Working Speed:
Heat Source:
LPG Or Natural Gas
Output Device:
Rolling Output
Machine Direction:
Left-hand Or Right-hand
Machine's Speed:
50- 100m/min

gas singeing machine process


gas singeing machine 100m Min


textile singeing machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Standard sea clouds wooden box
Payment Terms
T/T , L/C, D/A, D/P
Supply Ability
Six per month
Product Description

Customized Gas Burner For Professional Industrial Fabric Textile Singeing Machine


Product Introduction:


The requirement on the grades of knitted fabrics becomes higher and higher. The singeing process of knitted fabrics is very important. Especially for the recently popular elastic cloth racking process, if singeing is added, the cost will be greatly reduced and the strength and cloth surface effects will be improved.

This product adopts the features of similar products and uses MJA burner. The burner nozzles are exquisitely made, and a circulating cooling tube is equipped at the burner to keep it working for a long time and ensure the evenness of the fire. The service life can reach as long as five years, and the power consumption is reduced by 50%, which greatly lowers the manufacturing cost.




1. Compact structure, and the distance between the rollers is small.

2. All the rollers except the transition rollers are dynamic rollers with decreases the tension and avoid corrugation.

3. PLC control and frequency conversion speed regulation ensures a stable synchronism and avoids corrugation.

4. The machine frames and rollers have high mechanical strength, together with small fit tolerance and stable transmission to avoid corrugation.

5. Multiple S type transmission and thread separation avoid corrugation and peeling and ensure even singeing.


Technical Parameters:


1. Vehicle distinction: Left, right

2. Width: 2,200mm

3. Thermal source: gasoline, natural gas and oil gas

4. Power consumption: Take gasoline and 2,200 mm width machine as an example: 10L /h

5. Speed: 40 to 100 m/min

6. Environment protection: equipped with dust removal device; up-to-standard, no pollution and low noise

7. Ways of singeing: counter-singeing, cutting and singeing

8. Span adjustment: 570 cooling cylinder adjustable.

9. Break point treatment: the burner turns to other direction automatically

10. Forms of cooling: steam, water

11. Singeing level,: above level 4




This machine is used to singe the fabrics like tubular pure cotton and weft cotton polyester, to remove the impurities and pile in the surface of fabrics.


The main technical parameters:


1.Machine’s form: open-width feeding fabrics with tubular kind, open-width doffing fabrics with tubular kind.

2. Machine direction: left-hand or right-hand

3. Machine’s speed: 50- 100m/min

4. Nominal width: 1300mm

5. Form and fabric passing method: two burners (radiant type), double faced (one positive and one reverse)

6. Compressed pressure from burner to cylinder: 0.245Mpa

7. Heating resource: Liquefied gas or gasoline (the gasoline gasification device is self-cared by users).

8. The heating consumption of single burner: 20m³/h

9. Transmission mode: exchange frequency conversion.

10. Installed power: about 6.7 KW


The structure of the machine:


1. Machine frame: mainly uses the structural steel shapes, mainly on channels steel.


2. Expanding device: use a pair of circular guide, on two side hemisphere bearing ring.


3. Burner: each burner contains one burner and one nozzle. The burner body is made of cast iron, inside is two cooling water channels, both ends of the burner body have one cut-off value for adjusting the frame width. The nozzle is punched by about 2000 pieces of 0.8mm stainless steel plates, crossly stacked with each other. The turning of burn is controlled by cylinder, and is equipped with a fixed fire angle adjusting device.


4. Pipeline: the host is mainly made of Φ2″welding tube, and is provided with a mixer, a stop fire extinguishers and an anti-explosion device of electromagnetic value, the roller pipe in the burner is Φ570mm and is equipped with a injector.


5. Hood: is made of 1.5mm stainless steel, on the top is axial flow fan.


6. Fire extinction: is made of 2mm stainless steel, there is one door at each feeding and outlet direction, it is easy to dismantle, the cover can be opened entirely, inside the box is two row hole steam jacket pipe, is all made of stainless steel.


7. Actively expanding supporting plate: is made up of over-feeding wheel, supporting plate and telescopic bar, the telescopic bar has four standards, adapting range: 14″~55″.

Others: the feed water device’s material is stainless steel.
