| Place of Origin | jiangsu,China |
| Brand Name | Smoothly |
| Certification | ISO9001 |
| Model Number | SL/230 |
Nonwoven Fabric Textile Industry Machines , Textile Drying Equipment
Nonwoven Fabric Mattress Coconut Coir Palm Fiber Sheet Dryer Oven Machine
Model: SL180 (200,220)/I, II-(A Type or B Type)
Application: To carry out weft brushing for the cut corduroy to make it in the form of raising or soft nap.
Nominal Full Width: SL180-1,800mm SL200-2,000mm SL220-2,200mm
Characteristic: I-10 hard brushes or soft brushes; II-10 soft brushes and 12 hard brushes; A Type is two-gear speed regulation at 12m/min and 20m/min, B Type is variable-frequency speed regulation at 8-22m/min
Installed Power: 14.5-25KW
Overall Dimensions: (L*W*H) 1,800*3,400 (4,000)*3,600 (mm)
Introduction
Product features: with a hard and soft brush or scraper box to remove impurities, impurities removal effect is good, cloth surface humidity drying uniform and stable, elastic varieties yield obvious effect.
Installed power: 7.5 ~ 12.5KW
Product uses: scraping and scraping round corduroy cloth, round brush and baking dryer. The door width of the lamp is reduced to the technological requirements, and the cloth cleaning is carried out.
Type and specification SL/230
Nominal width 2200mm
Product size: 15000 x 3400 x 3600 (mm)
Cloth speed: 10~50m/min (frequency conversion timing)
Steam pressure of drying cylinder: less than 0.2Mpa
Installed power: 10 ~22 KW
Moisture content: 12~18%
Moisture regain: 4~6%

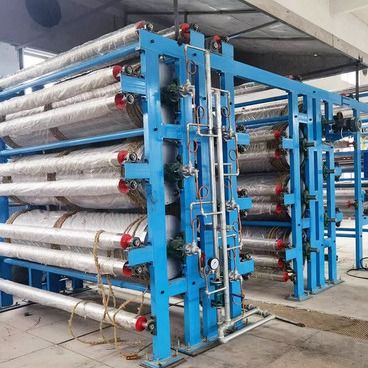

The main features of the product: the support of each moving component supported by the machine is bolted by longitudinal and transverse steel beams, simple structure, easy to adjust the various parts of the machine maintenance and disassembly. There are steam chambers and water collecting pipes in the wet box of the machine, which respectively play the role of thermal insulation and water collection. The main drive motor of the machine turns the drying cylinder through the transmission gear. In addition to drying fabrics, it also provides guide cloth and double fabric door width. This machine is equipped with impurity removal mechanism to increase the efficiency of cleaning cotton cloth.
Our Services
1.Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free installation and commissioning of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warrantee and life-time maintenance service;
8. Engineers available to service machinery overseas;
9. Provide technical exchanging;
10. Provide English Version of Installation/Operation/Service/Maintenance.
Typical Products Information
Basic Info
| Model | FSHG2800 |
| Name | Relax Dryer |
| Application | Drying the fabric,eliminating exceeding water and achieving the natural moisture content of the fabric |
| Suitable Fabric | knitted and Woven Fabric |
| Max. Working Width | 2400mm |
| Machine Speed | 0-50m/min |
| Chamber Nos | 4 Sets |
| Power Supply | 380V·3P·50HZ |
| Weight of Machine | ≈24.5T |
| Working Type | Three-layor net belt cycling |
| Net Belt Type | Glass fiber with PTFE coated |
| Driving Type for net belt | PLC+Inverter control |
| Heat-setting Type | Natural Gas heating hot air circulating |
| Max Drying Temperature | 160ºC |
| Temp. control type | Automatically regulate two chambers temperature as one section |
| Length of Chamber | 2.1M |
| Thickness of Insulation Board | 105mm |
| Machine Dimension | L=12500mm W=4500mm H=3400mm |
| No | Item | Max.Temp | Specification | Consumption |
| 1 | Natural Gas | 160ºC | P≈2Kpa - 3.5Kpa / 35544KJ /(8500KCal)/m³ | 8-13m3/H·Chamber(6.5-10.5kg) |
| Electricity | ||||
| No | Item | Specification | Consumption | |
| 1 | Chamber | blower motor etc | 22KW/section | |
| 2 | Main Driving & Control | Motor etc | 16.5KW | |
| Total Power | 94.5KW | |||
| Working Consumption | ≈40KW | |||
| Compressed Air source | ||||
| No | Item | Specification | Consumption | |
| 1 | Compressed Air | 0.35-0.6Mpa clean compressed air | / | |
Payment Terms:
Payment Conditions: 30% down payment by T/T and the balance payment should be T/T or in irrevocable L/C at sight.
Delivery time: 30-60days from the date of receiving down payment. All payment should be received before delivery in China.
