Industry Textile Drying Machine Equipment With Singeing Machine

High performance Fabric Dryer Machines Equipped With Impurity Removal Mechanism Singeing Machine

Model: SL180 (200)/I, Ih, II, IIh-(A Type or B Type)

Application: To carry out cylindrical singeing for brushed corduroy to remove lousiness in suede leather.

Nominal Full Width: SL180-1,800mm SL200-2,000mm

Characteristic: I-single cylinder, Ih-single cylinder plus feeding drying cylinder, II-double cylinders, II h-double cylinders plus feeding drying cylinder, A Type is speed governing motor control, B Type is variable-frequency speed synchronous control.

Overall Dimensions: (L*W*H) 11,000 (18,000)*5,500 (5,800)*4,200 (mm)

Width: 2200--2300mm.
Features: with a hard soft brush or scraping box in addition to impurities, impurity removal effect, the fabric humidity drying uniform and stable, stretch effect of the effect of obvious varieties.
Installed power: 7.5 ~ 12.5KW
Product use: the corduroy fabric scraping scraping, round brush, drying drum baking treatment. So that the door of the light bulb shrink to the process requirements, while the cloth cleaning process.

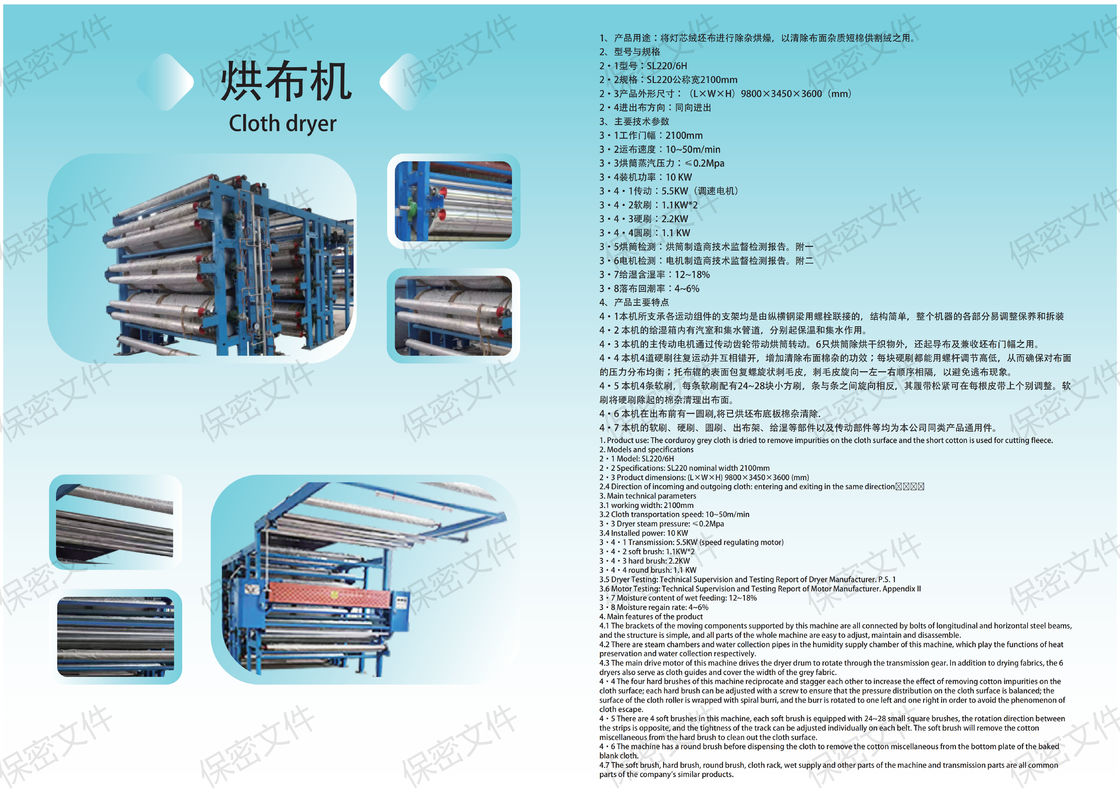

Model and specifications: SL / 230 nominal width 2200mm
Product Dimensions: 15000 × 3400 × 3600 (mm)
Speed: 10 ~ 50m / min (frequency control)
Drying tube steam pressure: ≤ 0.2Mpa
Installed power: 10 ~ 22KW
To wet moisture: 12 ~ 18%
Falling moisture regain: 4 ~ 6%
Main features: The machine supports the movement of the various components of the bracket are by the vertical and horizontal steel beam bolted, simple structure, the entire part of the machine easy to adjust maintenance and disassembly. The machine to the wet box has a steam chamber baking water pipes, respectively, from the role of insulation and catchment. The main drive motor of the machine is driven by the transmission gear to rotate the cylinder. In addition to drying fabrics, but also from the cloth and take the cloth door width of the use. This machine is equipped with impurity removal mechanism, increase the clearance of cotton cloth heteroaryl effect.
