| Place of Origin | jiangsu,China |
| Brand Name | Smoothly |
| Certification | ISO9001 |
| Model Number | SL/230 |

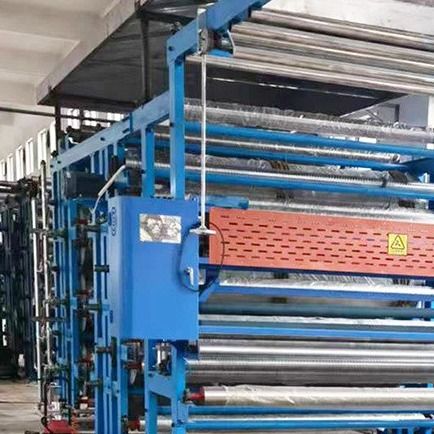

Fully Automatic Fabric Dryer Machines For Textile Profession 2200--2300mm Width
Normal drying systems are as follows:
The water content of the fiber is initially reduced by either centrifugal extraction or by mangling before evaporative drying. The evaporative drying is done by using dry and/or hot moving air.
The water content in hanks is initially reduced by using centrifugal extraction followed by evaporative drying.
The drying of cheeses after wet processing is normally carried out by centrifugal extraction followed by radio frequency drying (RFD).
The drying of yarn sheet after drying is done normally by using drying cylinders. In some cases, it is coupled with hot air drying or infrared drying.
The fabric drying in rope form is done by using mangle squeezing followed by blowing hot dry air.
The fabric in open width is dried by using a chain of drying cylinders or by using hot air drying after initial squeezing by mangles.
Specification
| Name | Fabric Dryer Machines |
| Width | 2200--2300mm. |
| Installed Power | 7.5 ~ 12.5kw |
| Model | Sl / 230 |
| Specifications | Nominal Width 2200mm |
| Product Dimensions | 15000 × 3400 × 3600 (Mm) |
| Speed | 10 ~ 50m / Min (Frequency Control) |
| Drying Tube Steam Pressure | ≤ 0.2mpa |
| Installed Power | 10 ~ 22kw |
| To Wet Moisture | 12 ~ 18% |
| Falling Moisture Regain | 4 ~ 6% |
Width: 2200--2300mm.
Features: with a hard soft brush or scraping box in addition to impurities, impurity removal effect, the fabric humidity drying uniform and stable, stretch effect of the effect of obvious varieties.
Installed power: 7.5 ~ 12.5KW
Product use: the corduroy fabric scraping scraping, round brush, drying drum baking treatment. So that the door of the light bulb shrink to the process requirements, while the cloth cleaning process.
Model and specifications: SL / 230 nominal width 2200mm
Product Dimensions: 15000 × 3400 × 3600 (mm)
Speed: 10 ~ 50m / min (frequency control)
Drying tube steam pressure: ≤ 0.2Mpa
Installed power: 10 ~ 22KW
To wet moisture: 12 ~ 18%
Falling moisture regain: 4 ~ 6%
Main features: The machine supports the movement of the various components of the bracket are by the vertical and horizontal steel beam bolted, simple structure, the entire part of the machine easy to adjust maintenance and disassembly. The machine to the wet box has a steam chamber baking water pipes, respectively, from the role of insulation and catchment. The main drive motor of the machine is driven by the transmission gear to rotate the cylinder. In addition to drying fabrics, but also from the cloth and take the cloth door width of the use. This machine is equipped with impurity removal mechanism, increase the clearance of cotton cloth heteroaryl effect.
Welcome to consult
Product Catalogue
| Machine Type | Cloth Guide Speed | Motor Power | Machine Size |
| Corduroy Cutting Machine | 12m /min | 9kw | 250cm * 235cm * 220cm |
| Textile Singeing Machine | 20 ~ 110m / min | 180KW | 250cm * 235cm * 225cm |
| Textile Dryer Machine | 10 ~ 50m / Min | 10 ~ 22kw | 15000 × 3400 × 3600 (Mm) |
| Fabric Inspection Machine | 1400rpm/min | 7KW | 235cm*350cm*230cm(72") |
| Fabric Inspection Machine | 0-150m/min | 7KW | 250cm * 235cm * 210cm |
| Fabric Inspection And Rolling Machine | ≤100m/min | 1.5kw | 2235(L)*2600~3600(W)*2000(H) |
| Fabric Brushing Machine | 8~22m/min | 14.5-25kw | 250cm * 235cm * 220cm |
| Fabric Folding Machine | 80y/Min | / | 2450*2820*1550 |
