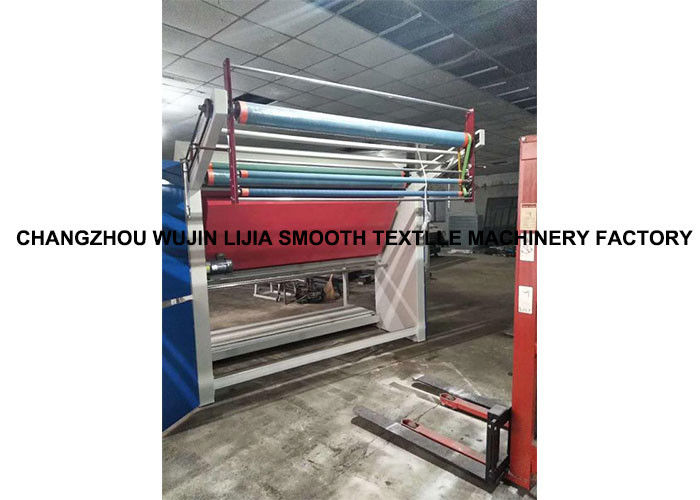

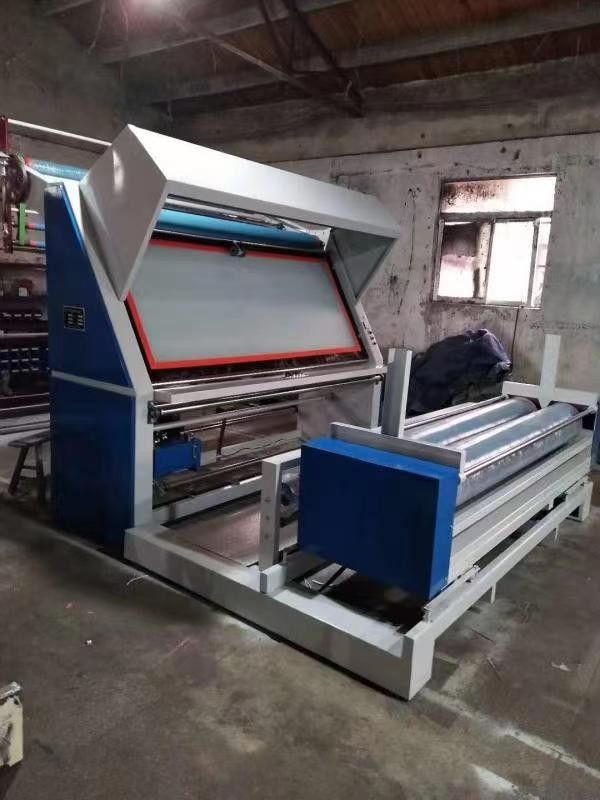

Woven Fabric Inspection And Rolling Machine 3200mm
  • Woven Fabric Inspection And Rolling Machine 3200mm

Woven Fabric Inspection And Rolling Machine 3200mm

Place of Origin jiangsu,China
Brand Name Smoothly
Certification ISO9001
Product Details
Fabric Inspection Machine
Working Width:
Max OD:
Rolling Speed:

woven fabric inspection and rolling machine


woven fabric inspection machine


inspection and rolling machine 3200mm

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
standard sea clouds wooden box
Payment Terms
T/T , L/C, D/A, D/P
Supply Ability
six per month
Product Description

Fabric Inspection Machine With Fabric Rolling Machine And Fabric Winding Machine

Technical Features

1. This machine is designed for inspection high quality open-width knitted fabric.

2. Open-width entering device with fabric tighten frame.

3. Rolled fabric entering device

4. Tension pole adjust the speed in forward and backward, cause the fabric inspection without tension.

5. Inspection platform with lighting box installed, the diagonal design makes the inspection work easier and simpler, and increase the works speed.

6. Electric length calculator calculates the length of fabric accurately.

7. Electric eye tracing edge device, cause the fabric upload neatly.

8. Work platform installed between fabric inspection and uploading device.

9. Machine top lighting device.

10. Double roller uploading device.

11. Fabric and automatic stop device.

12. Blowing device.

13. Shape fabric rolling stretching roller, stretch out the fabric.

14. Roll to roll, plait to roll, roll to plait, plait to plait function can meet all kinds of requirements.
Additional Options:

1. Automatic cutting device.

2. Automatic weighing up device.

3. Defect fabric edge labeling device.

4. Fabric inspection recording software.

5. Spray device.

6. Vertical fabric shaking device.


OW-02 machine




1. One set motor driven twin roller un-winding device inspecting fabric in roll form equipped with two holding plate.

2. One set plaiting entry device with tension bar for inspecting fabric in fold form or from fabric trolley .

3. aMachine is driven by four ac gear-motors with inverters for infinitely variable speed control.

4. With three potential meters controlled dancing rollers, for delivery and winding up to guarantee true tensionless operation.

5. Two scroll rollers for delicate curled edges.

6. One set ergonomically designed inspection table for high speed operation with easy vision of fabric faults, with internal illumination.

7. One set overhead illumination.

8. One set remote on/off control by foot pedal.

9. True length measurement of running fabric at tensionless relaxed state with two stage electronic preset length counter.

10. Photo-cell fabric end detector to stop machine automatically at end of fabric.

11. One set operator platform place between inspection and winding up unit.

12. Adjustable roll hardness on winging device make sure fabric rolling evenly.

13. One set electronic scanning device at winding unit assures accurate edge-alignment control before winding.

14. One set air nozzles to provide uncurling effect on fabric edge.

15. One fabric winding device to provide fabric finished in roll form.

16. One set plaiting device on exit.

17.Voltage:380v/50Hz three phase (can be customized)


Technical Parameters


1, Standard work area 2300mm,2500mm,2800mm
2, Speed 0~60 m/min
3, Size 3600(L)*3000(W)*2000 (H)mm
4, Total power 3.5KW
5, Weight 1500KG


Additional options

1, Automatic cutting device
2, Automatic weight up device
3, Defect fabric edge labeling device
4, Fabric inspection recording software
5, Spray device

6, Vertical fabric shaking device
