Narrow Fabric Inspection Machines 90m Min
  • Narrow Fabric Inspection Machines 90m Min

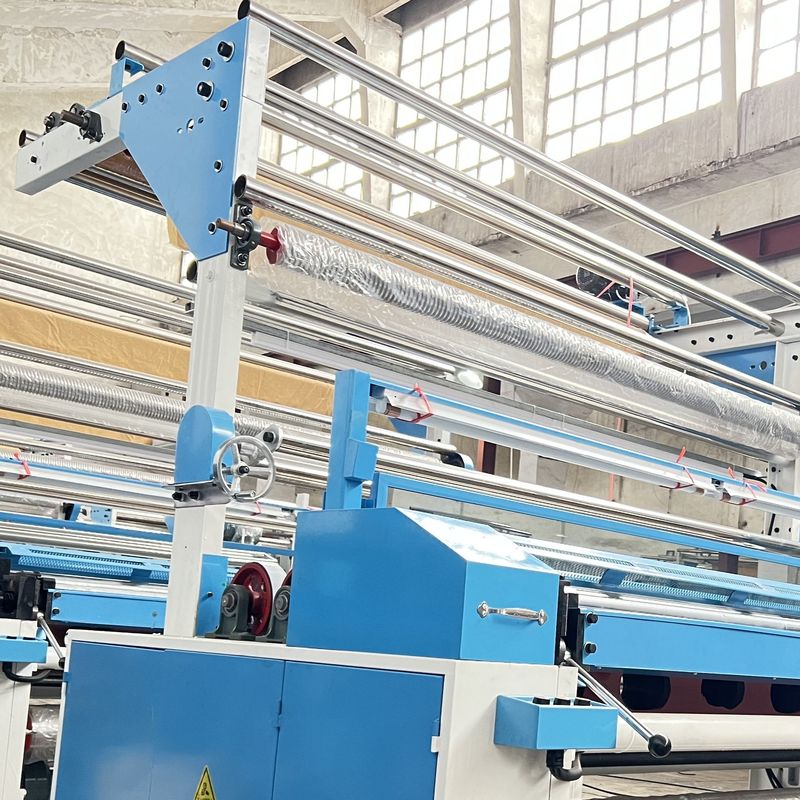

Narrow Fabric Inspection Machines 90m Min

Place of Origin jiangsu,China
Brand Name Smoothly
Certification ISO9001
Product Details
Automatic Fabric Inspection Machine
Working Wisth:
Fabric Inspection
Winding Diameter::
Max 480mm

fabric inspection machines


fabric inspection machine 90m min


narrow fabric inspection machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
standard sea clouds wooden box
Payment Terms
T/T , L/C, D/A, D/P
Supply Ability
six per month
Product Description

Fabric Inspection Machine, Testing Machine,fabric Length Measuring Machine

Main Features

1) It is used for inspection and rolling of all kinds of chemical fabric,cotton or intertexture grey cloth and finished fabric

2) It adopts the combination of VF for speeding governing and gear reducer, magnetic particle clutchfor controlling tension, assembing electronic length counter and infrared ray side flushing.

3) It could add side sucking device and imported mechanical stopwatch.

Product details

Name fabric inspection machine with fabric rolling machine and fabric winding machine
Function Inspection and rolling
Fabric Width 1800mm-3600mm
Winding Diameter Max 480mm
Fabric Type Chemical fabric,cotton,finished silk
Speed 0-100m/min
Type of Deviation Correction Machinery
Main Motor Power 1.5kw-3kw
Product Keywords fabric inspection machine with fabric rolling machine and fabric winding machine


Features :

* Active Unwinding - tension control
Twin unwinding rollers are driven by motor, help fabric roll active unwinding. To avoid damage or tension caused by passive pull.

* Fabric End Stop Sensor >> -efficiency
It will allow for continuous fabric inspection, from one piece of roll to next, no need to feed fabric again.

* Dancing Roller - tension control
It will move up and down to control tension, ensuring speeds of feeding, inspecting and re-winding synchronized.

* Full Width Fabric Inspection >> -tension control
60 degree fixed angle inspection screen which has been verified thousand times with the least influence for fabric tension. It is the most suitable angle for knitted fabric.

* Scroll Roller - curled edge control

03 sets of Scroll Roller & 01 set of Air-blowing device

1. Before inspection table, the scroll roller will make fabric open totally when inspection.
2. After inspection, the scroll roller will open fabric curled edges again to make sure a accurate edge-align.
3. Before rewinding, the scroll roller & Air-blowing device will once more open fabric and eliminate crease for perfect roll generation.

* Digital Counter Meter

- Unit Meter(M) and Yard(YD) optional

- Error less than 0.1m/km

- Pre-set length available

* Edge-alignment Sensor
align the fabric edges accurately. When fabric declines, the rewinding station will move left or right for aligning.


* Twin Rewinding Roller
Consistent roll output by actively surface rewinding with twin rubber-covered roller.
The roll compact could be adjust due to different ratio of the rollers. You could adjust the roll hardness (Loose or Tight) through the hand-wheel.

Excellent Features of SL Garment Defects Fabric Inspection Method

1) Low Tension Fabric Delivery and Speed Synchronization Unique mechanical and electric device combination for making fabric feeding, delivering and re-winding synchronous.

2) Full Width Fabric Inspection - with 45 Degree Fixed Angle Inspection Screen Fabric can be checked under the aid of different viewing and lighting options.

3) Accurate Fabric Length and Optional Weighing Machine. Fabric roll length and weight can be taken by industrial standard measuring systems with digital readouts to give consistent fabric roll assessments.

4) Stretch Fabric Control - with Scroll Roller System and De-curling System. Fabric controlled from input to electro/ pneumatic edge guilding system for perfect roll generation.

5) Consistent Roll Output - with Twin Rewinding Roller and Roll Hardness Adjustment Processed rolls are rewound with the minimum amount of tension and are consistent from roll to roll.

6) Versatile Fabric Input and Output Options - Synchronize with Other Production Operations Optional systems are available for different fabric input and output presentations, roll to roll, continuous fabric input and plait input and output.

7) Pneumatic Roll Ejection Device - Optional Heavy produced rolls can be pushed by the pneumatic cylinder arms so as to save labour power.

8) Data Collection and Analysis System ( 4-point System) - Optional 100% fabric inspection with software for accurate fabric roll analysis and printout.

9) Automatic Linear Cut ( Fabric Roll End Cutter) - Optional Full width cutting at the end of processed roll, fast and accurate.

Product Description

Technical Features

1. This machine is designed for inspection high quality open-width knitted fabric.

2. Open-width entering device with fabric tighten frame.

3. Rolled fabric entering device

4. Tension pole adjust the speed in forward and backward, cause the fabric inspection without tension.

5. Inspection platform with lighting box installed, the diagonal design makes the inspection work easier and simpler, and increase the works speed.

6. Electric length calculator calculates the length of fabric accurately.

7. Electric eye tracing edge device, cause the fabric upload neatly.

8. Work platform installed between fabric inspection and uploading device.

9. Machine top lighting device.

10. Double roller uploading device.

11. Fabric and automatic stop device.

12. Blowing device.

13. Shape fabric rolling stretching roller, stretch out the fabric.

14. Roll to roll, plait to roll, roll to plait, plait to plait function can meet all kinds of requirements.
Additional Options:

1. Automatic cutting device.

2. Automatic weighing up device.

3. Defect fabric edge labeling device.

4. Fabric inspection recording software.

5. Spray device.

6. Vertical fabric shaking device.
