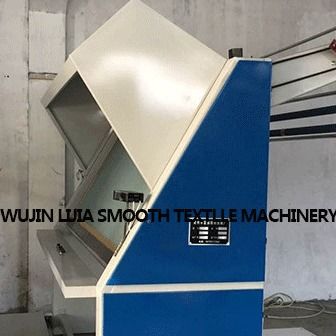

Fabric Rewinding-Inspection Machine Fabric Inspection Table
  • Fabric Rewinding-Inspection Machine  Fabric Inspection Table

Fabric Rewinding-Inspection Machine Fabric Inspection Table

Place of Origin jiangsu,China
Brand Name Smoothly
Certification ISO9001
Product Details
Type:
Automatic Fabric Inspection Machine
Speed:
9-90min(stepless)
Color:
OEM
Working Wisth:
1800mm-3200mm
Highlight:

fabric inspection table

,

Rewinding-Inspection Machine Fabric

,

Fabric Rewinding-Inspection Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
standard sea clouds wooden box
Payment Terms
T/T , L/C, D/A, D/P
Supply Ability
six per month
Product Description

China Smoothly Elastic Fabric Full Automatic Fabric Inspection Machine



Product Description



Customer Question & Answer


For textile industry use suntech fabric inspection machine



SUNTECH Knitted Fabric Inspection Machine with optional data collection and analysis system(4-point system) to handle a wide range of fabrics, from tension-sensitive elastomeric and lycra fabrics to stable woven, technical and upholstery materials.

This machine can be supplied to operate from plait/loose fabrics to roll, or with various other fabric inlet or outlet options.



Model

SL-KFIM Open Width Knitted Fabric Inspection Machine

Fabric Width

1800mm-4000mm

Speed

5-54m/min

Standard Roll Diameter

500mm

Dimention(L*W*H)

3300x3100x2000mm(for model ST-KFIM-260 only)

Weight

1550kgs(for model ST-KFIM-260 only)

Electric Specs

3Phase-380V; 50Hz(can be adjusted to suit for different countries)

Remark

Variable working width is possible and can be tailor-made to your requirements of processing needs.


Features :

* Active Unwinding - tension control
Twin unwinding rollers are driven by motor, help fabric roll active unwinding. To avoid damage or tension caused by passive pull.

* abric End Stop Sensor >> -efficiency
It will allow for continuous fabric inspection, from one piece of roll to next, no need to feed fabric again.

* Dancing Roller - tension control
It will move up and down to control tension, ensuring speeds of feeding, inspecting and re-winding synchronized.

* Full Width Fabric Inspection >> -tension control
60 degree fixed angle inspection screen which has been verified thousand times with the least influence for fabric tension. It is the most suitable angle for knitted fabric.

* Scroll Roller - curled edge control

03 sets of Scroll Roller & 01 set of Air-blowing device

1. Before inspection table, the scroll roller will make fabric open totally when inspection.
2. After inspection, the scroll roller will open fabric curled edges again to make sure a accurate edge-align.
3. Before rewinding, the scroll roller & Air-blowing device will once more open fabric and eliminate crease for perfect roll generation.

* Digital Counter Meter

- Unit Meter(M) and Yard(YD) optional

- Error less than 0.1m/km

- Pre-set length available

*Edge-alignment Sensor
align the fabric edges accurately. When fabric declines, the rewinding station will move left or right for aligning.



* Twin Rewinding Roller
Consistent roll output by actively surface rewinding with twin rubber-covered roller.
The roll compact could be adjust due to different ratio of the rollers. You could adjust the roll hardness (Loose or Tight) through the hand-wheel.

Excellent Features of SL Garment Defects Fabric Inspection Method

1) Low Tension Fabric Delivery and Speed Synchronization Unique mechanical and electric device combination for making fabric feeding, delivering and re-winding synchronous.


2) Full Width Fabric Inspection - with 45 Degree Fixed Angle Inspection Screen Fabric can be checked under the aid of different viewing and lighting options.


3) Accurate Fabric Length and Optional Weighing Machine. Fabric roll length and weight can be taken by industrial standard measuring systems with digital readouts to give consistent fabric roll assessments.

4) Stretch Fabric Control - with Scroll Roller System and De-curling System. Fabric controlled from input to electro/ pneumatic edge guilding system for perfect roll generation.


5) Consistent Roll Output - with Twin Rewinding Roller and Roll Hardness Adjustment Processed rolls are rewound with the minimum amount of tension and are consistent from roll to roll.


6) Versatile Fabric Input and Output Options - Synchronize with Other Production Operations Optional systems are available for different fabric input and output presentations, roll to roll, continuous fabric input and plait input and output.


7) Pneumatic Roll Ejection Device - Optional Heavy produced rolls can be pushed by the pneumatic cylinder arms so as to save labour power.


8) Data Collection and Analysis System ( 4-point System) - Optional 100% fabric inspection with software for accurate fabric roll analysis and printout.


9) Automatic Linear Cut ( Fabric Roll End Cutter) - Optional Full width cutting at the end of processed roll, fast and accurate.



Suntech Elastic Fabric Fabric Inspection Machine (ST-KFIM)

FAQ

Q1: Is the machine have length counting? In Meter or Yard or Inch?
A1: Yes, Digital Counter Meter is installed on the machine which gives Meter counting or Yard counting.
The desired length also could be pre-set on the digital counter meter. When arrives at pre-set length, machine stops automatically.

Q2: How to feed fabric onto machine? Easy?
A2: Machine layout and drawing of feeding course will be supplied along with machine.

Q3: What is the electrical specs? Can it be used directly in my country?
A3: 3 phase, 380v and 50hz(can be adjusted to suit for different countries)

Q4: Is the control panel in English?
A4: Yes, English version for control panel and relevant operation manuals.

Q5: How long is the warranty? If any problems, how you solve it?
A5: 13 months from the date of shipment. If any quality problems within warranty, Suntech will responsible for it, and send new replacement free of charge.

Q6: Can we install it by ourselves? Overseas engineer is available?
A6: The machine will be shipped under assembled base, no need to install again.
